THE TD5SPY LOGGER

Enable the TD5 logging capability and automatically upload your monitoring logs to the TD5SPY website.You can then analyse the data on a trip by trip basis.

If you have enabled GPS tracking in the application, your routes are displayed in Google Maps. Each log entry is linked to GPS coordinates and a timestamp, allowing you to gauge the performance over a specific portion of your journey.

Simply click at the point (on the route map) where you wish to start your view and then click at the point you want to stop your view. A green and red marker will be displayed to indicate the start and stop points. The graphs will be zoomed to display the selected section of the log.

The following graphs are currently available:

RPM, SPEED, TURBO BOOST, ENGINE LOAD, COOLANT TEMP, ALTITUDE, THROTTLE, FUEL DEMAND, AIR INTAKE, AIR/FUEL RATIO, INSTANTANEOUS, SECTION AND AVERAGE CONSUMPTION, DIESEL USED AND VARIOUS CONTROL INPUTS

(The enhanced features displayed on this page, relating to the display and analysis of uploaded data may, in the future, be part of a subscription service. They are currently available for general use)

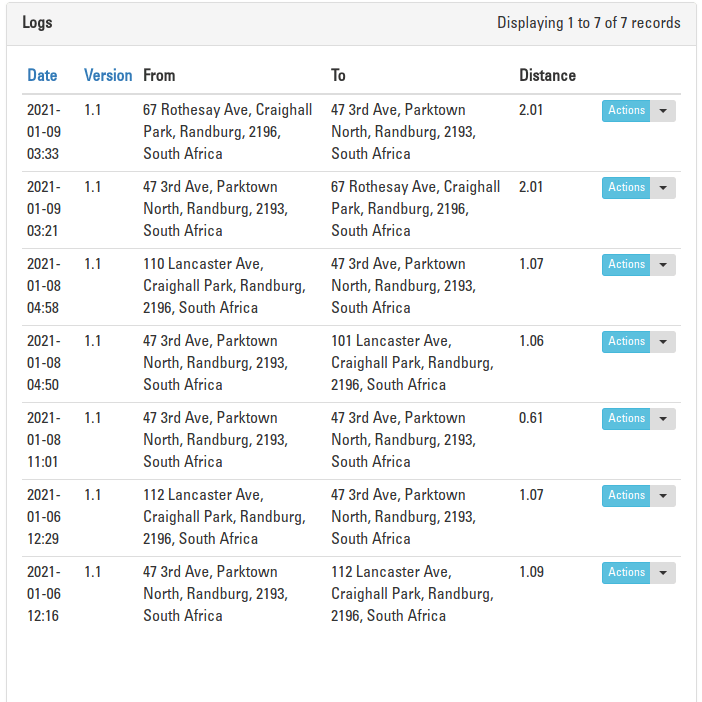

TRIP LOG - TRIPS

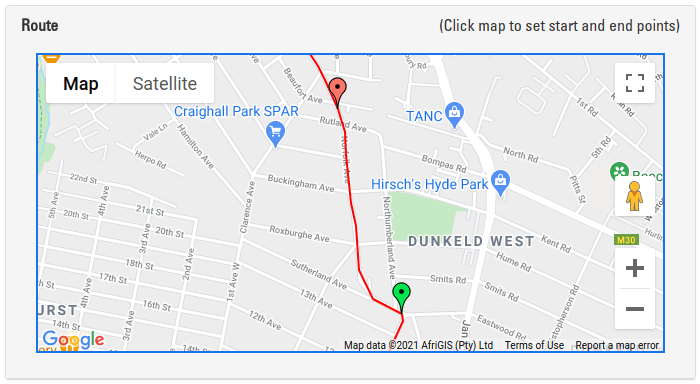

TRIP LOG - MAP

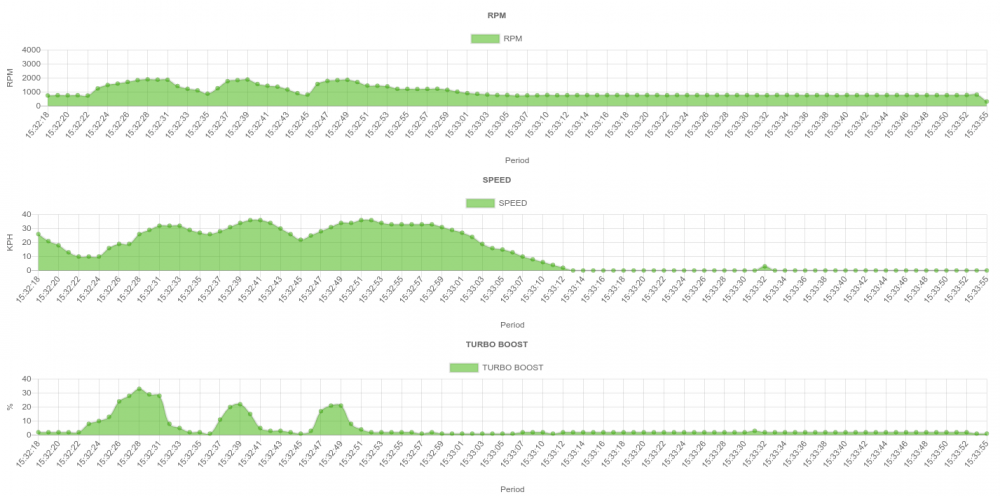

TRIP LOG - GRAPHS 1
